How Does a Soft Gel Capsule Filling Machine Work? Exploring the Technology Behind Softgel Encapsulation Equipment

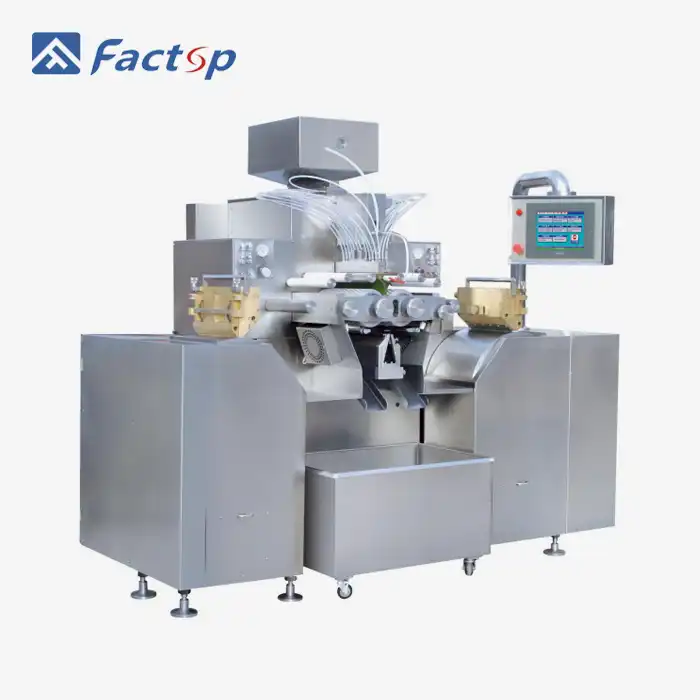

Soft gel capsule filling machines are very complicated machines that are used in the pharmaceutical and nutrition industries. These tools fill soft gelatin capsules with liquids or mixes that are almost liquids. This lets a lot of softgel pills be made quickly and correctly. But how does a machine really work that fills soft gel capsules? This is a cool chance to learn about the cool science and engineering that goes into making these high-tech packing systems. A soft gel capsule filling machine makes soft gelatin capsules, fills them, and seals them all at the same time. It does this by controlling heat, fluid dynamics, and mechanical engineering. To begin the process, two thin strips of gelatin are put into the machine. These strips are cut into capsules, filled with the right liquid mix, and then sealed together as they move through the system. All of this is done instantly and in a single process that never stops. Modern softgel encapsulation tools like the HSR-300 type can make up to 178,500 capsules an hour, which shows how useful they are. Soft gel capsule filling tools make sure that the output is always of high quality and uniform, and they also speed up production. To do this, they use accurate die rollers, filling volumes that can be changed, and quality control measures that are built right in.

The Step-by-Step Process of Softgel Encapsulation

Gelatin Preparation and Feeding

The first step is to make the gelatin paste that will be used to make the capsule shell. This mixture usually has gelatin, water, plasticisers, and colourants or other additives that aren't required. Before being put into the encapsulation machine as two long strips, the gelatin is melted, and the temperature is carefully controlled.

Capsule Formation

When the gelatin strips go into the machine, they go between two die rolls that are turning. There are half-sphere shapes on the top of these cylinder-shaped dies. The gelatin is shaped into hemispheres as the ropes go through it. These will be the two halves of each capsule.

Fill Material Injection

The liquid or almost-liquid fill material is pumped into the machine at the same time. As the capsule halves are being made, the Soft Gel Capsule Filling Machine fills the lower half with exact amounts of the filling material. Machines like the HSR-300 can give out between 0 and 2ml of medicine per capsule, so the fill volume can be changed to match the dose.

Sealing and Cutting

The top and bottom gelatin strips are now arranged in rows of filled hemispheres. They are then joined together and sealed. This makes a long strip of capsules that are joined together. The strip is then run through a machine that cuts it, separating the pills into their own pieces.

Drying and Quality Control

To set the gelatin shell, the pills that have just been made are dried. Then, they go through a number of quality control checks, such as a visual review, a weight check, and a leak detection check.

Key Components of a Soft Gel Capsule Filling Machine

To achieve this complex process with high precision and speed, soft gel capsule filling machines incorporate several sophisticated components:

Die Rolls

The heart of the machine, die rolls are precision-engineered cylinders with carefully shaped indentations. The HSR-300 model, for example, features die rolls with dimensions of 150 x 300mm, allowing for high-capacity production.

Injection System

A high-precision pump and nozzle array deliver the exact amount of fill material into each capsule. Advanced systems can adjust fill volumes on-the-fly to maintain consistency.

Sealing Mechanism

This component brings the two gelatin ribbons together and applies the right amount of pressure and heat to create a hermetic seal around each capsule.

Cutting System

A synchronized cutting mechanism separates the Soft Gel Capsule Filling Machine ​​​​​​ the continuous strip of capsules into individual units without damaging the delicate softgels.

Control Systems

Modern machines like the HSR-300 incorporate advanced control systems and HMIs (Human Machine Interfaces) that allow operators to monitor and adjust all aspects of the encapsulation process in real-time.

Advancements in Soft Gel Capsule Filling Technology

The field of softgel encapsulation is continuously evolving, with new innovations enhancing efficiency, flexibility, and product quality:

Increased Production Speeds

Modern machines can produce capsules at astounding rates. The HSR-300, for instance, can output up to 178,500 capsules per hour, significantly boosting production capacity.

Improved Fill Accuracy

More accurate fill volumes are now possible thanks to improvements in pump technology and control systems. This is especially important for pharmaceutical uses where precise dosing is needed.

Enhanced Flexibility

The new tools let you use a wider range of capsule sizes, shapes, and fillings. To meet specific needs, some can even make multi-layer or enteric pills.

Integration of Quality Control

Machine vision and Soft Gel Capsule Filling Machine, other sensor technologies are used in in-line quality control systems that let the packaging process be watched and changed in real time.

Sustainability Features

Newer models have features that cut down on trash, make the machine use less energy, and make the encapsulation process more environmentally friendly. Pharmaceutical engineering has come up with some very clever ideas, like the technology behind soft gel capsule filling tools. These machines make billions of capsules every year with amazing consistency and efficiency thanks to their precise gears, advanced fluid handling, and complex control systems. Understanding the ins and outs of softgel encapsulation technology is important for research institutions, pharmaceutical companies, and businesses that make nutraceuticals in order to choose the right equipment and make production processes run more smoothly. As the need for softgel goods grows, we can expect more innovations in this area. These will make things even more efficient and open up more options for what can be done with softgel encapsulation.

Conclusion

Soft gel capsule filling tools are the most advanced way to make pharmaceuticals. They use precise engineering and advanced process control to make large quantities of high-quality softgel capsules. Companies in the health supplement, nutraceutical, and pharmaceutical industries need to make sure they have the right encapsulation tools to stay ahead of the competition and make sure their products are of high quality. Jining Factop Pharmacy Machinery Company is at the cutting edge of this technology and has high-tech soft gel capsule filling tools like the HSR-300 model. Factop's equipment is made to meet the needs of both big pharmaceutical companies and growing small businesses. It can make 178,500 capsules per hour, has precise fill control, and meets international quality standards like CE, GMP, FDA, and ISO9001. Factop has the skills and tools to meet your needs, whether you're a big drug business looking to improve your production line, a health supplement company wanting to make softgel products, or a research institute that needs to be able to do flexible encapsulation. The need for safe, high-performance encapsulation solutions is exactly what our dedication to new ideas, quality, and customer service meets. Feel free to get in touch with our team of experts if you want to know more about how Factop's soft gel capsule filling tools can help your business grow and improve your production.

FAQ

Q1: What types of products can be encapsulated using a soft gel capsule filling machine?

A: Soft gel capsule filling machines can encapsulate a wide range of liquid and semi-liquid formulations, including vitamins, minerals, herbal extracts, fish oils, cosmetic oils, and many pharmaceutical compounds. The versatility of these machines makes them suitable for use in pharmaceutical, nutraceutical, cosmetic, and food supplement industries.

Q2: How do soft gel capsule filling machines ensure accurate dosing?

A: Modern soft gel capsule filling machines use precision pumps and advanced control systems to ensure accurate dosing. The fill volume can be precisely adjusted, often down to fractions of a milliliter. Many machines also incorporate in-line weight checking systems to verify fill accuracy in real-time, allowing for immediate adjustments if any deviations are detected.

Q3: What maintenance is required for a soft gel capsule filling machine?

A: Regular maintenance is crucial for ensuring the longevity and performance of soft gel capsule filling machines. This typically includes daily cleaning of product contact parts, regular lubrication of moving components, periodic inspection and replacement of wear parts (such as seals and nozzles), and calibration of control systems. It's important to follow the manufacturer's recommended maintenance schedule and procedures to keep the machine operating at peak efficiency.

High-Quality Soft Gel Capsule Filling Machines for Pharmaceutical Production | Factop

Are you looking to enhance your pharmaceutical or nutraceutical production capabilities with state-of-the-art soft gel capsule filling technology? Look no further than Jining Factop Pharmacy Machinery Company. Our advanced HSR-300 model offers unparalleled efficiency, producing up to 178,500 capsules per hour with precision and reliability.

As a leading manufacturer of pharmaceutical equipment, Soft Gel Capsule Filling Machine, we understand the unique challenges and requirements of the industry. Our soft gel capsule filling machines are designed to meet the highest standards of quality and performance, backed by certifications including CE, GMP, FDA, and ISO9001.

Whether you're a large pharmaceutical company seeking to upgrade your production line or a growing nutraceutical manufacturer looking to expand your product offerings, Factop has the perfect solution for you. Our experienced team is ready to assist you in selecting the right equipment to meet your specific needs and production goals.

Don't let outdated equipment hold back your production potential. Invest in a Factop soft gel capsule filling machine and experience the difference in quality, efficiency, and reliability. Contact us today at michelle@factopintl.com to discuss your requirements and take the first step towards optimizing your softgel production process. Let Factop be your partner in pharmaceutical innovation and success.
