How Does a Supplement Capsule Filler Work? A Complete Guide to Automated Capsule Filling

A supplement capsule filling machine operates through an automated process that separates empty capsules, fills them with precise amounts of powder or granules, and reassembles them into finished products. Modern automated capsule fillers integrate advanced dosing systems, tamping mechanisms, and quality control sensors to achieve production rates exceeding 1,200 capsules per minute while maintaining filling accuracy within 3%. These sophisticated machines have revolutionized supplement manufacturing by eliminating manual labor, reducing contamination risks, and ensuring consistent product quality across large-scale production runs, making them indispensable for pharmaceutical and nutraceutical companies seeking efficient, compliant manufacturing solutions.

Understanding How a Supplement Capsule Filling Machine Works

Modern capsule filling technology is the peak of pharmaceutical engineering. It uses advanced robotics and precise physics to produce uniform, high-quality results. Knowing how these tools work on a deep level helps manufacturers make smart choices about where to spend in their production.

Modern Capsule Filling Technology

Modern capsule filling technology represents the peak of pharmaceutical engineering, using advanced robotics and precise physics to deliver uniform, high-quality results. Understanding how these tools work helps manufacturers make smart choices about production investments.

Core Components and Their Functions

A capsule filling machine relies on perfectly synchronized parts. Empty capsules enter the bin and are aligned before the separation station uses vacuum technology to split caps from bodies. The dosing system then measures exact powder amounts, with advanced models featuring weight-checking to maintain accuracy across thousands of capsules per hour.

Step-by-Step Automated Process

The automated process begins as capsules enter through the hopper. After vacuum separation, precise dosing places powder or pellets into each body, achieving accuracy within ±3%. Finally, caps and bodies are pressed together under controlled pressure, while quality sensors verify proper closure and weight before ejection.

Machine Categories and Production Capabilities

Capsule filling machines fall into three categories. Manual units suit small batches and research. Semi-automatic systems produce 800 to 1,500 capsules per cycle, ideal for mid-sized businesses. Fully automatic models reach up to 468,000 capsules hourly, featuring advanced sensors and real-time tracking for consistent quality.

Choosing the Right Supplement Capsule Filling Machine for Your Business

When choosing the right supplement capsule filling machine, you need to carefully consider a number of factors that have a direct effect on how well the production runs and how profitable it will be in the long run. Smart buying choices take into account both current needs and expected future growth to make sure that investments in tools will still be useful as the business grows.

Production Volume Assessment

When choosing pill-filling tools, the amount of production is the most important thing to think about. For businesses that make less than 50,000 capsules a month, manual or semi-automatic tools are usually enough to meet their needs while still being cost-effective and allowing for operating freedom.

Semi-automatic systems help medium-sized businesses that make between 50,000 and 500,000 capsules a month by balancing output with a reasonable capital investment. These tools help with automation while still letting operators keep an eye on important tasks. This keeps quality high while production grows.

To keep prices low and meet market demand, large-scale businesses that make more than 500,000 capsules a month need fully automatic systems. With a capacity of 1,200 pills per minute, the NJP-1200D model is a great example of the high-throughput ability needed for making supplements on an industrial basis.

Material Compatibility and Capsule Specifications

Modern supplement recipes include a wide range of materials that need to be handled with specific skills. Powder recipes need precise dose systems with dust control features to keep ingredients from getting mixed up and to make sure the right amount is filled. To keep granular materials from separating and to keep their spread even, they need to be handled in different ways.

When choosing a machine, capsule size compatibility is very important because different types can handle different size groups, from 000 to 5. Vegan and specialty capsule materials may need different ways to be handled to keep them from getting damaged during processing. This is especially true for capsules that don't have the same physical qualities as standard gelatin forms.

Formulations that are sensitive to temperature need climate-controlled filling settings and special handling of materials to keep the consistency of the product. These features are usually built into machines made for medicinal use. They make sure that Good Manufacturing Practice rules are followed during the whole production process.

Regulatory Compliance and Quality Standards

GMP compliance is a must for supplement makers, who need to make sure their equipment meets strict standards for quality and paperwork. Suppliers of supplement capsule filling machine solutions must provide full validation paperwork, which includes methods for installation qualification, operating qualification, and performance qualification.

FDA rules require manufacturers to have tools with built-in monitoring systems and data logging features so that products can be tracked and checked for quality. These features allow for quality assurance in real time and provide the proof needed for regulatory checks and, if necessary, product returns.

ISO 9001 certification shows that a seller is committed to quality management systems. This means that you can be sure that the equipment will work well and that you will get good help after the sale. By choosing certified providers, you lower your risk of not following the rules and make sure you can get qualified expert help when you need it.

Maintaining and Troubleshooting Supplement Capsule Filling Machines

Preventive maintenance plans have a big effect on how long equipment lasts and how reliably it produces results. This is why planning maintenance is such an important part of running a successful capsule-filling business. Maintenance plans that are carried out correctly keep equipment from breaking down without warning and keep the quality of the product high during long production runs.

Daily Maintenance Protocols

Cleaning the pill-filling machine every day is an important part of keeping it in good shape because it stops material buildup that can lead to quality problems or technical issues. Operators should clean all areas that come into contact with the product with approved cleaners that get rid of leftovers without hurting the parts of the equipment.

When planning a lubrication routine, it's important to pay close attention to what the maker says. This is because proper lubrication stops wear before it happens and keeps product pathways clean. Modern machines use food-grade lubricants and protected bearing systems to keep up with upkeep needs and keep products safe.

Visual checks done as part of the daily starting process help find problems before they become production issues. Operators should listen for any loose parts, strange noises, or moves that don't seem right. These could be signs of a growing technical problem that needs instant attention.

Common Troubleshooting Issues

One of the most common problems in operations is capsule jamming, which can happen because the capsules are not oriented correctly, they are broken, or the machine has not been adjusted properly. When operators are properly trained, and accuracy is checked on a regular basis, jams happen much less often, and output keeps going.

Fill weights that don't stay the same often mean that there are problems with the dose system, the flow of powder, or old parts that need to be replaced. Modern machines have weight-checking systems that find and discard capsules that don't meet quality standards. This keeps standards high and lets workers know about possible problems.

Cross-contamination issues need to be dealt with right away, especially when moving between different formulas or materials that contain allergens. Established cleaning validation procedures make sure that all materials are removed completely between product changes. This keeps quality problems and legal violations from happening.

Supplier Support and Service Networks

Professional equipment providers are different from commodity vendors because they offer reliable after-sales support. This gives capsule filling operations peace of mind and operating continuity. Complete service agreements should include the ability to respond to emergencies, plans for preventative repair, and guarantees that spare parts will be available.

Technical training programs help operators and repair workers get the most out of their tools while reducing the chances of them breaking down. Qualified suppliers make sure their customers get the most out of their equipment purchases by giving them hands-on training, paperwork, and ongoing support.

Modern supplement capsule-filling machine designs have more and more features that allow for remote tracking. This lets suppliers offer proactive support and repair suggestions before they happen. These technologies lower the cost of service while increasing the uptime of equipment by finding and fixing problems faster.

Comparing Supplement Capsule Filling Machines: Features, Price, and Efficiency

A full review of equipment needs a methodical comparison of the features, prices, and ways of working of various machine types and suppliers. To find the best options, smart procurement workers weigh the costs of the initial investment against the costs of running the business in the long term and the gains in productivity.

Performance Metrics and Efficiency Analysis

The most obvious measure of performance is throughput capacity, but to figure out efficiency, you have to look at true output rates in the real world. Effective production capacity goes beyond ideal maximum speeds because of things like switching times, cleaning needs, and moving materials.

Accurate filling has a direct effect on the quality of the product and on following the rules, so exact specs are very important when judging. Modern automatic tools are accurate to within ±3% of the time, while human systems may vary more based on the skill of the operator and the properties of the material.

The amount of energy used has a big effect on running costs, especially in factories that make a lot of things. Machine designs that are efficient use variable-speed drives, air systems that work better, and smart controls that keep performance standards while using less power.

Cost Analysis and Return on Investment

The prices of manual, semi-automatic, and fully automatic systems change a lot when they are first bought. Fully automatic systems cost more because they can do more. But lower labor costs and better productivity often make it worth it to spend more in capital for the right amount of production.

Operating costs include things like energy, repairs, replacement parts, and training for operators, which add up over the life of the equipment. For large-scale production, automatic machines usually have lower unit costs, while manual methods might be more cost-effective for smaller activities.

The following comparison shows how the main types of machines are different in important ways:

• Manual methods require the least amount of money up front and give you the most options for small batches, study purposes, and special formulations that need to be changed often.
• Semi-automatic tools are good for medium-scale output because they get some automation benefits but still need to be controlled by an operator.
• Fully automatic systems are the most efficient and consistent way to run large-scale operations. They pay for themselves by saving money on labor and improving quality.

Leading Models and Market Options

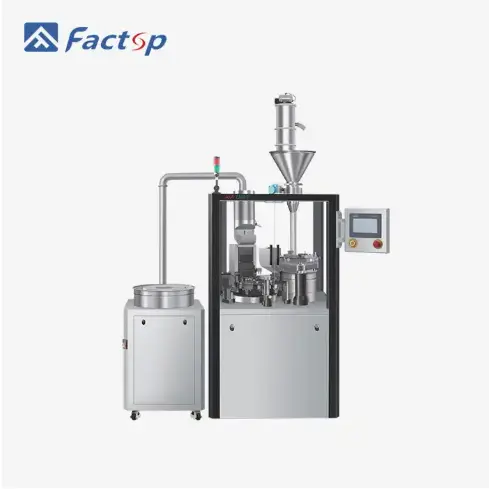

The NJP-1200D automatic capsule filler is a great example of current high-performance machinery because it can fill 1,200 pills per minute and is very accurate and reliable. This model works well for pharmaceutical and large-scale nutrition companies that need to be able to consistently make a lot of products.

New and used tools are both available on the market, so there are choices for people with different budgets and operational needs. Reliable providers give approved refurbished machines with the same guarantees and support services as new equipment. This lets smaller makers use more advanced technology.

Financing and leasing choices let businesses buy technology like a supplement capsule filling machine without having to pay for it all at once. This way, costs are spread out over a longer period of time, and the business can keep its working cash for other needs. These deals usually include support and repair services, which makes it easier for growing businesses to keep track of their tools.

Future Trends in Automated Capsule Filling Technology

Industry 4.0 technologies are changing the way capsule filling equipment is made by adding smart sensors, predictive analytics, and remote tracking features that make operations more efficient and lower the cost of upkeep. With these improvements, automated supplement capsule-filling machine technology is now at the cutting edge of new ways to make medicines.

Smart Manufacturing Integration

Connectivity to the Internet of Things lets you watch and collect data on tools in real time, which gives you information about how efficient your production is and what the quality trends are. Smart machines can automatically find possible problems, plan maintenance tasks, and keep working settings at their best to keep them running at their best.

Applications that use artificial intelligence look at production data to find ways to make things better and to guess what repair needs to be done on equipment before it breaks down. These features cut down on unplanned breaks and make tools work better overall by constantly improving their performance.

Integration with enterprise resource planning systems makes it easier to handle supplies, schedule production, and keep track of quality documents. This makes it possible for information to move smoothly through all of a company's manufacturing processes. This connection helps people make better decisions and coordinate operations better in work settings that are very complicated.

Sustainability and Environmental Considerations

Concern for the environment leads to the creation of equipment that uses less energy and makes less trash, which is in line with companies' sustainability goals. To have the least amount of effect on the environment, modern machines have energy recycling systems, motors that use less energy, and air usage that is optimized.

As more people choose plant-based options, vegan capsule compatibility becomes more important. This means that equipment needs to be changed to work well with different material qualities. Manufacturers need to make sure that their machines can adapt to the changing needs of the market without lowering the quality or speed of their work.

Reducing packaging trash programs affects how machines are made so that they use the least amount of materials possible while still protecting products and following the rules. Innovative methods include bulk packing systems and packages that can be used more than once. These methods lower the environmental impact all along the supply chain.

Conclusion

Technology for supplement pill-filling machines has grown into complex automation solutions that meet the wide range of industrial needs in the nutraceutical and pharmaceutical sectors. Understanding working principles, selection criteria, and upkeep needs helps people make smart choices about equipment that improves production efficiency and meets regulatory requirements. Modern machines like the NJP-1200D show how advanced engineering can give great performance by mixing fast operation with pinpoint accuracy to meet tight production schedules. When a business invests in automated capsule filling technology, it saves money on labor costs, gets better quality control, and can make more products, which helps the business grow in competitive markets.

FAQ

1. What is the typical maintenance schedule for automated capsule filling equipment?

Automated capsule filling machines require daily cleaning and inspection routines, weekly lubrication of moving components, and monthly calibration checks to maintain optimal performance. Comprehensive checks and part replacements once a year make sure that the system will work for a long time and meet all legal requirements.

2. How adaptable are capsule fillers to different capsule sizes and materials?

Modern supplement capsule filling machine designs accommodate capsule sizes ranging from 000 to 5 through adjustable tooling and changeover kits. Vegan and specialty capsule materials require specific handling parameters, but most professional machines can be configured to process various capsule types effectively.

3. What is the expected lifespan of high-quality automated capsule filling equipment?

Well-maintained automatic capsule fillers typically operate effectively for 15-20 years with proper maintenance and periodic component upgrades. Regular preventive maintenance and quality replacement parts significantly extend equipment lifespan while maintaining production efficiency and quality standards.

Partner with Factop for Advanced Capsule Filling Solutions

Elevate your supplement manufacturing capabilities with Factop's industry-leading supplement capsule filling machine technology. Our NJP-1200D automatic filler delivers exceptional 1,200 capsules per minute production capacity with pharmaceutical-grade precision, backed by comprehensive technical support and global service networks. As an established supplement capsule filling machine manufacturer, Factop combines innovative engineering with reliable performance to meet diverse production requirements across pharmaceutical, nutraceutical, and research applications. Contact michelle@factopintl.com to explore customized solutions that enhance your production efficiency, ensure regulatory compliance, and support sustainable business growth through proven automation technology.
