How to Operate a Small Tablet Press Machine: A Step-by-Step Guide for R&D Labs

To use a small tablet press machine correctly, you need to understand the basic rules that are explained in the machine's tablet press machine manual. In research and development labs, precise control over compression settings, handling of materials, and quality output are all important. Learning the right way to set up, follow safety rules, and operate equipment in the right order makes it possible to consistently make tablets while extending the life of the equipment. Systematic methods make sure that results can be repeated with different mixtures and batch sizes.

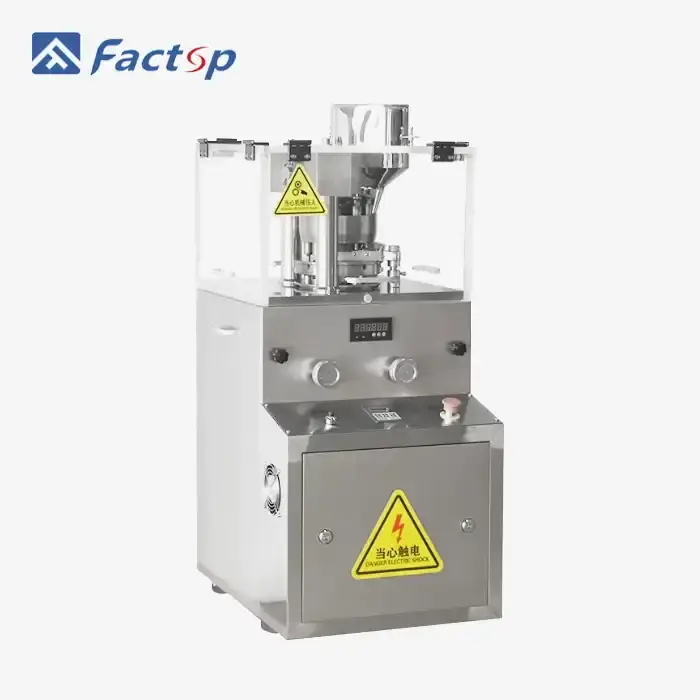

Understanding Small Tablet Press Machine Components

Small tablet press tools are made up of several important parts that work together to make regular tablets. The upper and lower cuts are what squeeze the tablet, and the die hole decides its shape and size. The hopper brings materials into the compression zone, and the feeder paddle makes sure that the powder is spread out evenly.

The turret holds several rotating points that allow the system to work continuously. Each stand has a set of tools that includes holes and dies. During the compression cycle, the cam tracks direct the movement of the punch, which sets the pre-compression and main compression forces.

Control screens show operating factors like the speed of output, the weight of the tablets, and the crushing force. Modern tools have tablet displays that make them easy to use. When guards are open, safety interlocks stop operation. This keeps workers safe from moving parts.

Figuring out how parts work together helps you fix problems and get the best results. The quality of tablets stays high by checking wear parts often. The working instructions for your tablet press machine have thorough pictures of the parts and specifics for your model.

Pre-Operation Safety and Setup Procedures

Make sure everything is safe before we use the tablet press. Things like safety glasses, hearing aids, and the right clothes are important for your safety. To keep your rings and clothes from getting caught on the moving parts, take them off.

Look over the guards and safety gear to make sure they are all in good shape. You should regularly check the emergency stop buttons and make sure they are easy to reach. There should be enough airflow in your workspace to keep dust from gathering. It should also be clean and well-lit.

If you want to check something, the first thing you should do is look at the punch and die. Tools that are worn out or broken make screens that don't always work right and can damage the machine. You need to pay attention to the oil spots in the repair plan that comes with your tablet press machine.

Making sure the power source is right checks the volts and lines. There shouldn't be any broken links between the lines. When used for mechanical parts, the source of compressed air must meet certain guidelines for quality and strength.

Part of getting the material ready is checking how the powder flows and how much water is in it, as outlined in the tablet press machine manual. When the flow isn't right, weight changes and screen flaws happen. Powder acts differently based on where it is, so the temperature needs to be controlled to get regular results.

Step-by-Step Operating Instructions

Turn on the control system and wait for the setup steps to finish before starting operation. The first step in setting up a tablet press machine is to add the right tools for your recipe. Adjusting the punch length determines the width of the tablet and must be done in a way that meets the needs of the recipe.

The amount of powder that goes into each die hole is controlled by the fill depth change. Start with choices that aren't too strict and make small changes over time until you reach your goal tablet weights. Before the main compression, the pre-compression force takes the air out of the powder bed.

The main crushing force decides how hard a tablet is, and it needs to be adjusted for each recipe. Too much force leads to caps or coating, while not enough force makes tablets that are soft. To get the desired results, the tablet press machine pressure settings need to be carefully calibrated.

The rate of production changes the stay time and the quality of the compression. When speeds are higher, powder doesn't stay under pressure for as long, which could affect the structure of the tablet. Start with mild speeds and slowly speed up while keeping an eye on the quality of the tablet.

Weight tracking tools tell you about pill uniformity in real time. Automatic rejection systems get rid of computers that don't meet quality standards, which keeps standards high. Tablets must meet all requirements during production runs by being tested and sampled on a regular basis.

Quality Control and Monitoring Parameters

Tablet weight variation indicates powder flow consistency and fill depth accuracy. Acceptable weight variation typically ranges from ±3% to ±5%, depending on formulation and regulatory requirements. Weight checks should be performed regularly throughout production.

Hardness testing measures tablet resistance to crushing forces. Proper hardness ensures tablets withstand handling and transportation while maintaining appropriate disintegration times. Hardness values vary by formulation but typically range from 4 to 10 kP for most pharmaceutical applications.

Thickness measurements confirm dimensional consistency and die fill uniformity. Thickness variation often correlates with weight variation and compression force fluctuations. Precise thickness control is essential for tablet packaging and coating operations.

Friability testing evaluates tablet durability during handling. Acceptable friability levels are typically below 1% weight loss after standardized testing. High friability indicates insufficient compression or formulation issues requiring attention.

Visual inspection identifies surface defects, including capping, lamination, sticking, and picking. These defects often indicate tooling problems, formulation issues, or improper operating parameters. The tablet press machine manual helps identify and resolve common quality issues.

Troubleshooting Common Issues

Weight variation problems often stem from inconsistent powder flow or feeder paddle wear. Cleaning the hopper and feeder mechanism usually resolves minor flow issues. Severe weight variation may require formulation adjustments or equipment modification.

Tablet sticking occurs when material adheres to punch faces, leaving marks or removing tablet surface material. Sticking typically results from moisture content, formulation incompatibility, or insufficient lubrication. Punch polishing and lubrication adjustments often resolve sticking issues.

Capping and lamination involve tablet separation along compression planes. These defects usually indicate excessive compression speed, insufficient pre-compression, or formulation problems. Reducing production speed and optimizing compression parameters typically eliminates these issues.

Machine vibration and noise may indicate worn bearings, loose components, or improper lubrication. Regular maintenance prevents most mechanical issues. Unusual sounds require immediate investigation to prevent equipment damage.

Tooling wear affects tablet appearance and dimensional accuracy. Regular inspection and replacement of punches and dies maintains consistent quality. The tablet press machine parts inventory should include common wear items to minimize downtime.

Maintenance and Cleaning Best Practices

Daily cleaning removes powder residue and prevents cross-contamination between products. Disassemble tooling and clean all powder contact surfaces thoroughly. Use appropriate cleaning agents and methods specified in your tablet press machine cleaning protocols.

Weekly maintenance includes lubrication of specified points and inspection of wear components. Check the cam roller condition and replace it if excessive wear is evident. Verify punch guide clearances and adjust if necessary.

Monthly inspections cover electrical connections, safety devices, and calibration verification. Weight monitoring systems require periodic calibration using certified weights. Pressure transducers and other sensors need regular verification to ensure accuracy.

Annual overhauls involve complete disassembly and inspection of major components. Bearing replacement, cam track refinishing, and control system updates maintain equipment reliability. Professional service ensures compliance with manufacturer specifications.

Documentation requirements include maintenance logs, calibration records, and cleaning verification. Regulatory environments demand detailed records demonstrating equipment suitability for pharmaceutical production. The tablet press machine user guide provides templates for required documentation.

Advanced Operating Techniques

According to the tablet press machine manual, compression force optimization involves balancing hardness requirements with tablet integrity. Force ramp studies identify the minimum compression needed for acceptable tablets. Excessive force increases tooling wear and may cause tablet defects.

Dwell time optimization adjusts compression speed to achieve optimal tablet properties. Longer dwell times allow stress relaxation and improve tablet bonding. The relationship between speed and tablet quality requires careful evaluation for each formulation.

Tooling selection affects tablet appearance and production efficiency. Specialized coatings reduce sticking and extend tooling life. Custom tooling enables unique tablet shapes and embossing for product identification.

Environmental control maintains consistent operating conditions. Temperature and humidity fluctuations affect powder behavior and tablet quality. Climate-controlled production areas ensure reproducible results across different seasons.

Process analytical technology enables real-time monitoring of critical quality attributes. Near-infrared spectroscopy and other analytical tools provide immediate feedback on tablet composition and quality. These advanced systems enhance process control and reduce testing requirements.

In conclusion, operating a small tablet press machine successfully requires a thorough understanding of its components, proper setup procedures, and precise control of compression parameters. Consistent tablet quality depends on careful adjustment of fill depth, pre-compression, main compression force, and production speed, as well as continuous monitoring of weight, hardness, thickness, and friability. Following structured operating steps and adhering closely to the tablet press machine manual ensures safe operation, reliable performance, and repeatable results across different formulations and batch sizes. Equally important are proactive troubleshooting and routine maintenance, which prevent common defects such as sticking, capping, and weight variation while extending tooling and equipment life. By combining systematic quality control, detailed documentation, and optimized process settings, laboratories and small-scale manufacturers can achieve efficient, compliant, and high-quality tablet production while minimizing downtime and operational risks.

Ready to Optimize Your Tablet Production with Expert Equipment?

Factop delivers comprehensive tablet press machine manual documentation and technical support for laboratories worldwide. Our experienced team provides detailed operational guidance, maintenance protocols, and troubleshooting assistance tailored to your specific research requirements. Contact michelle@factopintl.com to discuss our tablet press machine manual supplier solutions and discover how our equipment enhances your R&D capabilities with reliable performance and exceptional after-sales service.

Operating small tablet press machines successfully requires systematic approaches combining technical knowledge with practical experience. Proper training, regular maintenance, and adherence to established procedures ensure consistent tablet quality and equipment longevity. Research laboratories benefit from understanding both fundamental principles and advanced techniques for optimizing tablet production. Quality control monitoring provides essential feedback for continuous improvement. Following manufacturer guidelines and industry best practices creates a foundation for successful tablet press operations in research and development environments.
