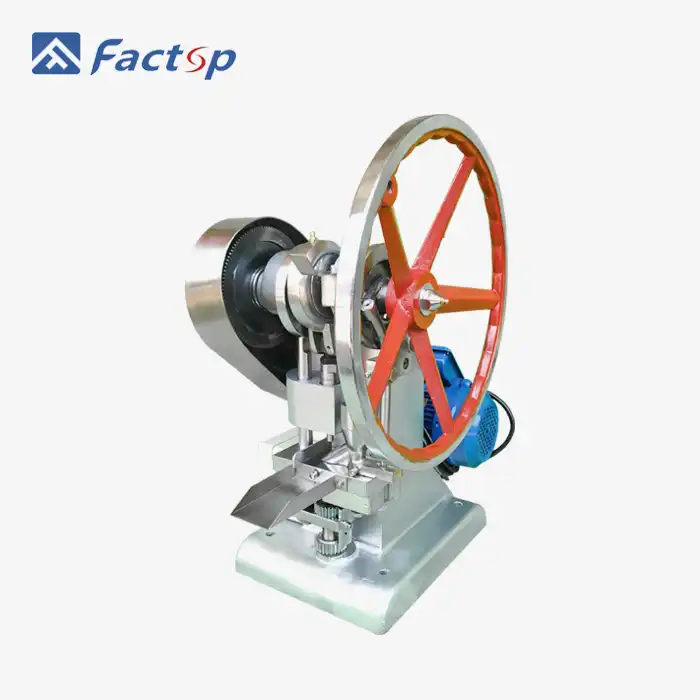

What Is a Single Punch Tablet Machine and How Does It Work? A Comprehensive Guide

A single-punch tablet machine, sometimes called an eccentric press, is a specialized piece of equipment used to make medicines. It carefully presses each tablet together one at a time. To turn powdered materials into solid pills, these machines use a single upper punch, a lower punch, and a die hole method. Understanding pill compression technology is important for buying things because these tools are the basis for chemical, pharmaceutical, and nutritional factories around the world. This detailed guide covers all the technical details, operating principles, and buying options that technical professionals and B2B buyers need to know when looking at tablet press solutions for their industrial needs.

Introduction

Tablet compression technology is very important for the pharmaceutical and nutrition businesses to keep production standards uniform and meet legal requirements. Single-punch tablet presses are an important piece of manufacturing equipment that lets companies make high-quality tablets while keeping tight control over the compression settings and the amount of material used.

When you buy tools, it's important to know about tablet compression technology because it affects how well they work and how much they cost to run. It's important to pick the right tablet press tools because they affect everything from the initial cost to the ongoing costs of maintenance and the ability to meet legal requirements.

Technical workers and business buyers will find this book useful. It tells them how the system works, what its specs are, how it compares to spinning systems, how to buy it, and how to keep it in good shape. This detailed guide tells you everything you need to know to buy the right tools, whether you're looking for tools for business production or for research and development.

What Is a Single Punch Tablet Machine? Understanding the Fundamentals?

Core Definition and Primary Functions

A single-punch tablet press, also known as a single-punch tablet machine, is a machine that uses mechanical pressing to make tablets out of medicinal powders, grains, and other materials. The idea behind how it works is based on applying controlled pressure through coordinated punch movements in a precisely designed die hole system.

Pharmaceutical businesses working on new drug formulations, nutrition companies making food products, and research schools studying formulas are the main groups that use it. These tools work great in places where accurate material control, small-batch output, and constant quality standards for tablets are needed.

Some of the main things that set single-punch machines apart from other tablet presses are their simpler mechanical design, lower material waste during operation, and better exact control over the parameters of each tablet. Unlike rotating tablet presses, which have multiple compression stations, single-punch systems only use one specialized device to focus the compression force. This gives you more control over the weight, hardness, and dimensions of the tablets.

Essential Components and Parts

Knowing about the technical parts helps buying teams judge the quality of the equipment and figure out how often it needs to be maintained. The upper and lower punch sections are the most important parts of the compression system. Their sides are carefully made to make sure that tablets are always formed correctly and to the right size across production runs.

The powder is held in place during the compression cycle by the die hole and the compression chamber working together. To keep tablets regular and stop material from leaking during operation, these parts need to be made with very tight tolerances. When making materials, they are usually made of sharpened steel or special alloys that are made to last through many compression cycles.

Drive mechanisms and motor systems provide the mechanical power that moves the punch and applies crushing force. Modern single-punch presses have varying speed controls and torque tracking systems that let workers find the best compression settings for each type of material. Control panels and safety features include emergency stops, pressure tracking screens, and protection cages that keep the person safe while still making it easy to do regular cleaning and maintenance.

Types and Specifications Available

The main operating groups that buyers can choose from are manual and automatic single-punch machines. Manual systems are better for study and small-batch production because the user has more control over them and the starting costs are cheaper. Automatic versions offer stable compression processes and less reliance on labor, making them perfect for production plans that stay the same.

Different needs for capacity and accuracy are met by laboratory models and models used in production. Laboratory units are usually small and have more precise controls, while production-scale tools focus on being durable and producing more. Facilities with limited room, like study labs and small manufacturing operations, can use desktop and compact versions.

Heavy-duty and precision versions are available to meet the needs of different applications. For tasks that need exact tablet specs, precision models have advanced control systems and tracking tools. Heavy-duty models, on the other hand, can handle rough materials and the constant use that is common in business production settings.

How Does a Single-Punch Tablet Machine Work? The Complete Process

Step-by-Step Working Principle

The first step in the process is filling and measuring the powder, which determines the weight and consistency of the tablets. Material enters the die hole by gravity or with the help of feeding devices. Fill depth controls make sure that the amount of powder in the die stays the same during each compression cycle.

In compression cycle physics, the upper and lower punches move in sync with each other to apply controlled pressure to the powder material. The top punch goes down into the die hole, and the lower punch acts as a stable compression surface. This creates the forces needed to pack the powder together and make a tablet.

The cycle ends with ejection and tablet discharge, and the lower punch rises to push the formed tablet out of the die hole. Timing and timing elements make sure that these movements stay in line so that cycle rates stay the same and moving parts don't interfere with each other mechanically.

Tablet Compression Process Breakdown

The pre-compression and main compression stages work together to get rid of air spaces and meet the density requirements for the end tablet. During pre-compression, light pressure takes air out of the powder bed and starts to link the particles together. Main compression uses all the force that is needed to get the desired hardness and stiffness of the tablet.

Applying force and distributing pressure are done by carefully controlled punch actions that make sure the whole surface of the tablet is compressed evenly. Material flow and consolidation happen when powder particles distort and stick together when they are compressed.

To keep tablet specs constant, quality control during compression means keeping an eye on the compression force, punch position, and cycle timing all the time. Modern systems have feedback settings that change factors automatically to account for differences in materials and keep quality standards high during production.

Technical Parameters and Control Factors

The range of tablet hardness values that can be reached with a certain piece of equipment is determined by the compression force levels and adjustment options. Digital screens show real-time information on compression factors, so operators can change the force levels to fit different types of materials and tablet sizes.

Fill depth and pill weight control methods make sure that the same amount of material is put into each compression cycle. It has precise change tools that let workers fine-tune these factors to meet exact weight requirements while wasting as little material as possible during production runs.

Controlling the compression speed and cycle time with a single-punch tablet machine lets output rates be optimized while tablet quality standards are kept. The largest tablet width, form choices, and special features like cutting or etching that are available with certain equipment types are all based on the specs and settings of the tools used.

Single Punch vs. Rotary Tablet Machines: Making the Right Choice

Capacity and Production Volume Comparison

One big difference between single-punch and rotating-tablet devices is their output rates. Single-punch machines can make anywhere from 500 to 6,000 tablets per hour, but rotating presses can make a lot more because they have multiple compression stations that can work at the same time.

Batch size limits and powers affect how to plan production and keep track of supplies. Single-punch systems work best for small batches and changing products often, while spinning machines work best for constant production of large amounts with little product change.

When a business is growing, it's important to think about scalability by comparing future production needs to current capability needs. Companies that plan to grow slowly might benefit from single-punch systems that can handle more production by working longer hours. On the other hand, companies that plan to grow quickly might need rotary press skills from the start.

Cost-Effectiveness Analysis

The amount of money needed for an initial investment is very different for single-punch and rotating-tablet devices. Single-punch machines usually don't need as much money to get started, so they're affordable for small businesses and new businesses that are just starting out.

Because they have a simpler motor design and fewer complicated parts, single-punch systems are cheaper to run and maintain. Routine repair tasks don't need as much specialized knowledge and can usually be done by expert staff who work for the company and have been trained to do them.

ROI estimates for various production cases rely on things like the number of items being made, the cost of labor, and the complexity of the product. When making purchasing choices, it's important to look at the total cost of ownership, which includes the original purchase price, running costs, upkeep costs, and the expected length of time that the tools will be used.

Application Suitability and Advantages

Single-punch machines work best in research and development settings that care more about keeping materials safe and controlling parameters precisely than making a lot of things. Because they can work well with expensive active medicinal ingredients, they are useful for formulating new drugs and making materials for clinical trials.

Some problems with this method are that it can't produce as many tablets as rotating systems can, and it costs more to make each tablet for big orders. When it comes to making unique medicines, nutraceuticals, and chemical tablets, where freedom and accuracy are more important than pure production volume, single-punch methods are the best choice.

Key Specifications and Features to Consider for Procurement

Critical Technical Specifications

The Single Punch Tablet Machine's maximum compression force and pressure ratings determine the range of tablet hardness values achievable with specific equipment. Our TDP1.5 model delivers precise compression capabilities with a maximum tablet diameter of 12 mm, suitable for most pharmaceutical and nutraceutical applications.

Tablet size and weight ranges define the product flexibility available with different equipment models. Production capacity and speed specifications directly impact manufacturing efficiency and labor requirements. The TDP1.5 achieves production rates of 4,500-6,000 pieces per hour, providing an excellent balance between output and precision control.

Power requirements and utility needs affect facility planning and operating costs. Understanding electrical specifications, compressed air requirements, and space considerations helps procurement teams prepare adequate infrastructure for equipment installation and operation.

Essential Features for Different Applications

Precision and repeatability requirements vary significantly between research applications and commercial production environments. Research facilities typically demand enhanced control capabilities and measurement accuracy, while production environments prioritize consistency and reliability over extended operating periods.

Automation levels and control systems range from basic manual operation to sophisticated computerized systems with data logging and process monitoring capabilities. Safety features and compliance standards ensure operator protection and regulatory compliance, particularly important for pharmaceutical applications requiring GMP certification.

Tooling flexibility and changeover capabilities affect production efficiency when manufacturing multiple products. Quick-change tooling systems reduce downtime during product transitions and enable efficient use of equipment across diverse product lines.

Quality Standards and Certifications

GMP compliance requirements mandate specific design features, documentation standards, and validation procedures for pharmaceutical applications. Our equipment carries CE, ISO9001, and GMP certifications, ensuring compliance with international quality and safety standards.

International safety and quality certifications provide assurance of equipment reliability and regulatory acceptance across global markets. Validation and documentation needs vary by industry and geographical location, requiring careful consideration during the procurement process.

Regulatory considerations for different markets involve understanding local requirements for equipment certification, operator training, and documentation standards. These factors significantly impact equipment selection and implementation timelines for international operations.

Maintenance, Troubleshooting, and Operational Excellence

Preventive Maintenance Best Practices

Establishing regular inspection schedules and checkpoints helps identify potential issues before they impact production operations. Daily visual inspections, weekly functional checks, and monthly detailed examinations create a comprehensive maintenance framework that extends equipment life and maintains performance standards.

Lubrication and component care procedures require specific attention to manufacturer recommendations for lubricant types, application frequencies, and quantity specifications. Proper lubrication practices prevent premature wear and ensure smooth operation of moving components throughout the equipment lifecycle.

Tooling maintenance and replacement guidelines help operators recognize wear patterns and establish replacement schedules that prevent quality issues and equipment damage. Performance monitoring and optimization involve tracking key metrics such as compression force consistency, cycle times, and tablet quality parameters to identify opportunities for operational improvements.

Common Issues and Troubleshooting Guide

Sometimes there are problems with the quality of tablets that show up as changes in weight, hardness, or size. Systematic ways of fixing problems involve looking at the properties of the powder, the compression settings, and the conditions of the tools to find the root causes and make the right fixes.

For mechanical problems to be diagnosed, methods must take into account the machine's working conditions, its repair history, and the way its parts wear over time. Fine-tuning compression settings, material handling methods, and weather controls to keep production conditions fixed are all parts of process optimization that lead to consistent results.

Knowing when to call technical support helps businesses balance their own problem-solving skills with the need for outside knowledge. Clear intervention processes make sure that complicated problems are solved quickly and help build internal knowledge and skills over time.

Operational Efficiency Optimization

When setting up and switching between products, best practices help keep downtime to a minimum and mistakes to a minimum. Standardized processes, the right way to store tools, and training programs for operators all help make changeovers go smoothly and keep starting performance high.

As part of their training, workers must learn how to use tools, follow safety rules, do quality checks, and fix simple problems. Full training programs make sure that workers can get the most out of their tools while still meeting safety and quality standards.

Standardization and recording of processes lay the groundwork for constant operations and efforts to keep getting better. Detailed working instructions, parameter standards, and quality control methods make output predictable and make it easier for workers and teams to share what they know.

Selecting the Right Single Punch Tablet Machine: A Buyer's Guide

Assessing Your Production Requirements

Volume and capacity planning involves analyzing current production needs and projecting future requirements to select equipment with appropriate capability and scalability, such as a single-punch tablet machine. Consider factors such as daily production targets, batch sizes, and seasonal variations that might affect capacity requirements.

Product specifications and material considerations encompass tablet size ranges, compression force requirements, and special features such as scoring or specialized shapes. Material properties, including flowability, compressibility, and abrasiveness, influence equipment selection and tooling requirements.

Future scalability and expansion plans affect equipment selection strategies, particularly for growing organizations that may need to increase production capacity over time. Budget and ROI expectations establish financial parameters for equipment selection and help prioritize features and capabilities based on value contribution.

Evaluating Suppliers and Manufacturers

Key criteria for supplier selection include technical expertise, manufacturing quality, service capabilities, and financial stability. Established manufacturers with proven track records in pharmaceutical equipment provide greater assurance of product reliability and long-term support availability.

Questions to ask potential suppliers should address equipment specifications, certification status, delivery timelines, training programs, and after-sales support capabilities. A comprehensive evaluation helps identify suppliers best positioned to meet specific requirements and provide ongoing partnership value.

Evaluation of technical support and service encompasses response times, service technician qualifications, spare parts availability, and documentation quality. Reliable technical support becomes crucial for maintaining production schedules and resolving issues quickly when they occur.

Implementation and Integration Considerations

Installation and commissioning requirements involve facility preparation, utility connections, and initial system setup procedures. Understanding these requirements helps organizations plan implementation timelines and budget appropriate resources for successful equipment deployment.

Staff training and knowledge transfer programs ensure operators can effectively utilize new equipment while maintaining safety and quality standards. Comprehensive training programs typically include theoretical instruction, hands-on practice, and competency verification procedures.

Integration with existing production lines may require consideration of material handling systems, quality control procedures, and production scheduling methods. Quality assurance and validation processes establish documented evidence that equipment meets specified requirements and performs consistently within established parameters.

Conclusion

Single-punch tablet machines represent essential equipment for organizations requiring precise control over tablet production while maintaining cost-effectiveness and operational flexibility. These specialized compression systems excel in research and development environments, small-scale production applications, and specialized manufacturing scenarios where precision outweighs pure production volume.

The selection process requires careful consideration of technical specifications, application requirements, and long-term operational goals. Understanding the fundamental differences between single-punch and rotary systems, along with proper evaluation of supplier capabilities and support services, ensures successful equipment procurement decisions that deliver lasting value to manufacturing operations.

FAQ

1. What is the typical production capacity of a single-punch tablet machine?

Production capacity varies significantly based on tablet specifications and machine configuration. Laboratory-scale units typically produce 500-2,000 tablets per hour, while industrial models can achieve 4,000-6,000 tablets per hour. Factors affecting actual output include tablet size, compression force requirements, material properties, and operator efficiency during setup and changeover procedures.

2. How do maintenance requirements compare between single-punch and rotary tablet presses?

Single-punch tablet machines require significantly less complex maintenance due to their simplified mechanical design with fewer moving parts. Routine maintenance includes cleaning, lubrication, and punch inspection procedures that in-house technical staff can typically perform. Rotary presses involve multiple compression stations and complex timing mechanisms that require specialized knowledge and more frequent professional service interventions.

3. What factors should I consider when choosing between manual and automatic single-punch tablet machines?

The decision depends on production volume requirements, labor availability, and quality consistency needs. Manual machines offer lower initial costs and greater operator control, making them suitable for research applications and small batch production. Automatic systems provide enhanced consistency, reduced labor dependency, and higher throughput capabilities, justifying their higher cost for regular production applications requiring consistent quality standards.

Partner with Factop for Your Single Punch Tablet Machine Requirements

Choosing the right tablet compression equipment requires expertise, quality manufacturing, and reliable support throughout the equipment lifecycle. Factop stands as a trusted single-punch tablet machine manufacturer with comprehensive capabilities spanning development, production, and global service support for pharmaceutical manufacturing equipment.

Our TDP1.5 single-punch tablet press delivers exceptional performance with a production capacity of 4,500-6,000 pieces per hour, a maximum 12 mm tablet diameter capability, and complete GMP, CE, and ISO9001 certification compliance. As an experienced supplier serving clients across America, Europe, and Asia, we understand the unique requirements of pharmaceutical, nutraceutical, and chemical manufacturing operations.

Contact michelle@factopintl.com to discuss your specific application requirements and discover how our single-punch tablet press solutions can optimize your production efficiency while ensuring consistent quality standards.
