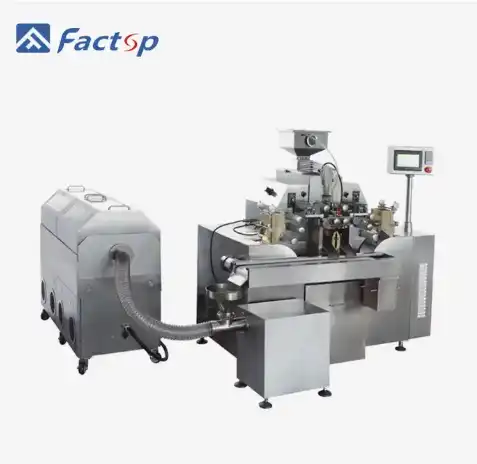

How Does a Soft Gelatin Capsule Filling Machine Work? A Step-by-Step Guide for Pharmaceutical Use

A soft gel capsule manufacturing machine operates through a sophisticated continuous process that transforms liquid gelatin into filled capsules using rotary die technology. The machine creates two gelatin ribbons simultaneously, injects liquid or semi-solid fill material between them, seals the capsules through heat and pressure, and cuts them into individual units. This encapsulation process requires precise temperature control, timing synchronization, and quality monitoring to ensure pharmaceutical-grade products that meet stringent regulatory standards.

Understanding the Soft Gelatin Capsule Filling Process

In the pharmaceutical industry, the soft gelatin packaging method is one of the most complicated steps in making drugs. When buying managers and production engineers understand this process, they can make better decisions about what tools to buy and how to run the business.

Gelatin Ribbon Preparation and Formation

The process of packaging starts with preparing the gelatin. To get the right thickness and temperature, pharmaceutical-grade gelatin is heated and processed. The gelatin solution, which is usually kept at a temperature of 50 to 60°C, runs onto drums that spin and have temperature control systems that are very accurate. These drums are made of stainless steel and have smooth, polished sides. They spin at controlled speeds to make sure that the ribbon width is the same all over.

Cooling fans placed around the casting drums in a planned way keep the gelatin strips stable as they form. The string thickness, which is usually between 0.6 and 1.2 millimeters, has a direct effect on how well the capsules stay together and how quickly they dissolve. Modern machines have automatic systems for checking the thickness of the material that give workers input in real time. This makes sure that the quality of the product stays the same throughout production runs.

Precise Capsule Formation and Filling

The rotary die system, where two perfectly matched gelatin strips meet, is at the center of the soft gel capsule manufacturing machine. The die rolls are made from aviation-grade aluminum, which is strong and accurate. They have holes in them that determine the end size and shape of the capsules. To make sure the seal works right and to avoid problems like weak seams or capsules that aren't shaped right, these holes must stay within very tight limits.

The injection device sends the fill material between the bands that are coming together through a heated wedge mechanism. This piece, placed exactly where the two lines meet, keeps the temperature between 35 and 45°C for regular gelatin and 46 to 57°C for vegetable-based options. The injection pump works in sync with the die's spin, providing precise fill volumes and getting rid of air pockets that could damage the capsule's structure.

Sealing, Cutting, and Quality Control

As the full ribbons move through the die rolls under controlled pressure, the closing process happens right away. Heat and mechanical force make airtight seals and cut individual capsules from the long string at the same time. To avoid seal failures or partial cuts that could lead to product rejection, this process needs to be done at the exact right time.

Quality control is built into the whole process check the weight of the capsules, the stability of the seals, and how they look. Automatic rejection systems get rid of broken units before they can go to the drying phase. This keeps production running smoothly and makes sure that only compliant products make it to the end of the manufacturing line.

Types of Soft Gelatin Capsule Filling Machines and Their Applications

The pharmaceutical business has a number of different packaging options to meet the needs of different production levels and needs. When building managers know about these choices, they can choose equipment that meets their present needs and can be expanded in the future.

Manual and Semi-Automatic Systems

There are specific uses for manual pill-filling systems in R&D labs, small-scale production sites, and places where custom formulations are made. Because operators can directly change the filling settings, these systems are great for small-batch experiments and unique goods that aren't made in large quantities. Even though they require a lot of work, manual systems can handle a wide range of fill materials and pill sizes without having to go through long switching processes.

Semi-automatic equipment is between fully automated and fully human operations. It uses machines to do things like filling and sealing while still requiring a user to keep an eye on important process factors. Usually, these devices can make between 1,000 and 3,000 capsules per hour, which means they're good for medium-sized businesses where batch sizes change a lot. Because automation isn't as complicated, the original investment costs are cheaper, and many pharmaceutical companies can still get good output efficiency.

Fully Automatic Production Lines

Advanced soft gel capsule manufacturing machine systems automate the whole process, from making the gelatin to packing it. Multiple process steps are combined on these high-tech production lines, such as ribbon casting, filling, sealing, drying, and quality checking. They can make anywhere from 5,000 to 50,000 capsules per hour, based on the shape and size of the capsules.

Programmable logic controllers (PLCs) are built into fully automatic systems and keep an eye on and change important process factors in real time. During the sealing process, temperature control systems keep precise heating zones in place, and servo-driven injection pumps make sure that the right amount of material is filled with very little change. These skills are very important for pharmaceutical companies that want to meet strict government rules while also making their production as efficient as possible.

Industry-Specific Adaptations

To work with different fill materials and meet different output needs, different businesses need machines that are set up in specific ways. Pharmaceutical uses need the cleanest conditions and most thorough records. That's why machines made of pharmaceutical-grade stainless steel have clean-in-place (CIP) systems and the ability to record a lot of information about each batch. Nutraceutical companies need to be able to work with a range of oil-based vitamins, while chemical companies may need special materials that can handle fill substances that are toxic.

Maintenance and Troubleshooting Best Practices

Effective repair plans keep equipment running at its best and reduce unplanned breaks that could mess up production schedules and make costs go up. Modern tools for encapsulating soft gelatin need to be able to do preventative maintenance in a planned way and fix problems quickly.

Routine Maintenance Protocols

Daily repair tasks are what make sure that equipment works well. These rules include cleaning all surfaces that come into contact with the product very well, checking the systems for making gelatin ribbons, and making sure that the temperature controls work correctly in all hot areas. Pay extra attention to lubrication systems because using the right amount of food-grade oils keeps things from sticking while also making sure there isn't too much lubrication, which could make drying take longer or change the way the capsule looks.

Weekly maintenance plans include more thorough checks of the orientation of the die rolls, the tuning of the injection system, and the performance of the cooling system. These thorough checks find possible problems before they affect the quality of the production or the dependability of the equipment. Keeping track of all the checks and changes in maintenance logs is a good way to figure out how often to do maintenance and when to replace parts.

Common Operational Challenges

Seal flaws are one of the most common problems in softgel production. They can be caused by bad temperature control, dies that aren't lined up right, or gelatin strips that are contaminated. As part of diagnostic methods, each process variable is carefully looked at in order to find the root causes. Keeping an eye on the temperatures in all hot areas helps find problems, and checking the position of the dies makes sure that the ribbons line up correctly and that the sealing pressure is spread out evenly.

Problems with capsule warping are usually caused by bad drying conditions or problems with the machinery used during transfer. To fix these issues, you need to carefully look at the conditions of the drying room, such as the temperature, humidity, and wind patterns. Regular checks of mechanical transfer systems are needed to make sure that capsules are handled gently so that newly made goods are not damaged.

Supplier Support and Warranty Services

Full aftermarket support has a big effect on the prices and dependability of production over the span of an item. Leading makers offer expert support 24 hours a day, seven days a week, fast supply of spare parts, and on-site service to keep downtime to a minimum during busy production times. Procurement teams should look at the warranty coverage, reaction times, and local service skills of soft gel capsule manufacturing machine providers to make sure long-term business success.

How to Choose the Right Soft Gelatin Capsule Filling Machine?

To choose the right encapsulation tools, you need to carefully consider several factors that affect both short-term working needs and long-term strategic goals. This process for making a choice includes technical requirements, cost factors, and the supplier's skills, all of which affect the project's success as a whole.

Production Capacity and Scalability Requirements

When figuring out production capacity, you have to start with the current number of needs and then think about how much more you will need over the equipment's predicted lifecycle. With a die roller size of 6460mm and a capacity of 5000pcs/hour, the HSR-60 model is an example of a mid-range production machine that is good for established pharmaceutical companies that have steady demand trends. Its small size (670450*750mm) and light weight (160 kg) make it easy to put in existing buildings without making major changes to the infrastructure.

When thinking about scalability, it's important to think about more than just the raw production numbers. You also need to think about how to handle different capsule sizes, fill materials, and batch needs. Modular parts and adjustable factors in equipment make it operationally flexible so that it can adapt to changing market needs without having to update the whole system.

Quality Certifications and Regulatory Compliance

Pharmaceutical equipment has to meet strict rules that change depending on the market and the product being used. Some important certificates are CE marking for markets in Europe, FDA compliance for operations in the US, and GMP (Good Manufacturing Practice) recognition for pharmaceutical uses. The ISO9001 quality management certification shows that there are organized ways to make sure that products are of high quality and that they are always getting better.

Factory Acceptance Testing (FAT) methods check the performance of equipment before it is shipped, and they provide written proof that the equipment meets the requirements. These thorough testing methods make sure that all the important factors are checked, such as the production capacity, the accuracy of the temperature control, and the usefulness of the safety system. Having the right FAT documents makes the installation and validation steps easier at the customer site.

Total Cost of Ownership Analysis

When evaluating equipment, the lifetime costs must be taken into account, such as the purchase price, installation costs, ongoing upkeep needs, and changes to operating efficiency. Over the course of an equipment's lifetime, which usually lasts between 15 and 20 years, factors like energy use, supply of spare parts, and service support costs have a big impact on the total costs of ownership.

Experienced makers like Factop offer 20-day delivery times that cut down on project execution costs by reducing facility downtime and speeding up the time it takes to start making new products. Manufacturers who deal with seasonal demand trends or urgent market opportunities benefit most from being able to supply goods quickly.

Real-World Case Studies and Industry Applications

Examples of real-world applications show the real benefits that can be gained from smart investments in tools and operational optimization. These case studies give useful information about planning projects, problems that come up during execution, and measured results that help people make smart decisions.

Pharmaceutical Manufacturing Efficiency Improvements

When a mid-sized pharmaceutical company replaced old hand-filling equipment with a new soft gel capsule manufacturing machine, they saw a big increase in productivity. The automatic system cut the number of workers needed by 60% and raised the production rate from 1,500 to 5,000 pills per hour. Some of the quality gains were a 95% drop in seal flaws and the end of weight variation problems that were causing batches to be rejected before.

Three months were spent planning and validating the application process, and two weeks were set aside for installing and testing the equipment. Operator training programs made sure that the changes went smoothly and that production plans for existing goods were kept. Based on higher throughput and lower labor costs, estimates of the return on investment showed payback times of less than 24 months.

Nutraceutical Industry Adaptations

A well-known company that makes fish oil supplements was able to successfully add more products to their line by using packaging equipment that could handle different fill amounts and viscosity levels. Because the machine was flexible, it could make both normal fish oil capsules and unique formulas with more than one active ingredient. This adaptability allowed the market to grow without having to buy more capital equipment.

The main goal of production optimization was to cut down on the time it took to switch between goods, with 15-minute shifts that made the best use of all the equipment. Automated cleaning systems cut down on the chance of contamination and sped up the approval processes that multi-product centers need.

Quality Compliance Success Stories

Pharmaceutical companies that sell their products in more than one foreign market need to improve their regulatory compliance in order to be successful. In one case study, tools had to be upgraded to meet stricter FDA rules. These rules included better systems for keeping records and better control over the production process. Regulatory filings were simplified by the updated soft gel capsule manufacturing machine, which enabled full batch tracking and automatic quality reporting.

Conclusion

Modern soft gelatin capsule filling machines represent sophisticated manufacturing solutions that combine precision engineering with advanced automation to meet pharmaceutical industry demands. The technology encompasses complex processes from gelatin ribbon formation through final capsule production, requiring careful consideration of equipment capabilities, maintenance requirements, and supplier support. Success depends on selecting appropriate machinery that balances production capacity, quality requirements, and long-term operational objectives while ensuring regulatory compliance across all target markets.

FAQ

Q1: What factors determine soft gel capsule production speed?

How fast they make them relies on the size of the capsules, the thickness of the fill material, how the machines are set up, and the quality control standards. It takes longer to handle larger pills, and high-viscosity fills may mean that injection rates need to be slowed down. Depending on these factors, modern technology can usually make between 5,000 and 50,000 pills per hour.

Q2: How does machine size affect installation requirements?

The sizes of equipment have a direct effect on how facilities are planned and how much it costs to place. Small machines like the HSR-60 (670450750mm) can be used in places that don't have a lot of room for them. On the other hand, bigger production lines might need their own areas with special services and systems for moving materials.

Q3: What automation benefits justify higher equipment costs?

Automation cuts down on the need for workers, makes things more consistent, improves quality control, and raises production levels. Through lower running costs and higher output, these benefits usually give investors a return on their money within 18 to 36 months.

Partner with Factop for Advanced Soft Gel Manufacturing Solutions

Discover how Factop's HSR-60 soft gel capsule manufacturing machine can transform your pharmaceutical production capabilities with proven reliability and exceptional performance. Our comprehensive solutions include complete equipment packages, expert installation services, and ongoing technical support designed to maximize your operational success. With CE, GMP, FDA, and ISO9001 certifications plus rapid 20-day delivery, Factop stands ready to meet your encapsulation equipment needs. Connect with our experienced team at michelle@factopintl.com to explore customized solutions from a trusted soft gel capsule manufacturing machine supplier committed to your long-term success.
