What Is a Tablet Die Press and How Does It Work? A Beginner’s Guide to Tablet Compression Machines

A tablet die press is a complex piece of machinery that uses controlled mechanical force and special manufacturing systems to turn powder mixtures into perfectly crushed tablets. Upper and lower cuts work with die holes in these compression tools to make regular tablets that meet exact quality and size standards. The tablet die press is an important piece of equipment in the chemical, food processing, pharmaceutical, and nutritional businesses. It makes tablets more consistently and more accurately and reliably than hand-pressing methods.

Introduction

Tablet die presses are important tools in the chemistry, pharmaceutical, nutritional, and other fields that need to make tablets precisely. B2B buying workers, like makers, OEMs, and wholesalers, can make better sourcing choices when they know about the functions, types, and specs of these machines. This information helps choose the best machines that meet output needs and government regulations. This improves the quality of the products and the speed of the business.

In the industrial world, accuracy and output requirements for compression tools are growing all the time. Modern tablet die presses have advanced control systems, automatic tracking features, and complex machine designs that make it possible to consistently make tablets that meet high quality standards. Because of these changes in technology, many different companies now make computers in different ways.

Around the world, more and more tablets need to be made with great accuracy. To stay ahead of the competition, you should know what tablet die presses can do and how to use them. Production places need equipment that works well, is stable, and can be changed to meet changing market and government needs.

What Is a Tablet Die Press?

A tablet die press is a special kind of machine used to make and press powder mixes into tablets of exact sizes and forms. It is the most important part of making tablets because it turns raw powders into finished dose forms through controlled compression processes. The machine works by giving a set amount of pressure to powder mixtures that are inside die holes. This makes pills that are all the same size, weight, and stiffness.

Types of Tablet Die Presses

Mechanical, hydraulic, manual, and robotic presses are some of the different types of compression tools. Each one is best for a different level of output and level of complexity. Manual tablet presses are a cheap way to make things for small-scale production and lab use, while automatic systems can make a lot of things quickly for large-scale operations.

Compression power is generated by cam-driven systems in mechanical presses, which make them stable for medium- to high-volume production needs. Fluid pressure systems allow hydraulic compression tools to precisely control force, which is especially useful for specialized tasks that need exact pressure requirements.

Industrial Applications

These tools are used a lot in the chemical, pharmaceutical, nutritional, and candy industries to make tablets of different shapes, sizes, and strength requirements. Pharmaceutical businesses use tablet die presses to make a wide range of medicine forms, from simple round tablets to complicated shaped dosage forms with raised identification marks.

Compression equipment is used in food processing plants to make candy pills, throat lozenges, and nutritional vitamins. These tools, including the Tablet Die Press, are used by chemical companies to make camphor balls, cleaning tablets, and catalyst pellets. When buying teams know about these differences, they can rate tools based on business needs and industry norms.

How Does a Tablet Die Press Work?

The tablet die press has a very detailed compression cycle that includes adding powder, pressing down, and ejecting the tablet. To get regular tablet quality and output speed with this complex process, many mechanical parts must work together perfectly.

Key Components and Design Principles

Punches and dies are two important parts that determine the end size and quality of the tablet. The top punch presses down on the tablet, and the lower punch supports it and makes it easier to remove. The width and shape of the tablet are determined by the die holes. Specialized designs can accommodate a wide range of tablet forms, from simple rounds to complex custom shapes.

The main ideas behind the design are to provide accurate cutting, exact compression force, and steady performance at necessary speeds. Modern tablet die presses have force tracking systems that measure crushing pressure all the time. This makes sure that the density of each tablet is the same and keeps the equipment from getting damaged by too much force.

Operational Specifications and Performance Factors

Important working parameters, such as press capacity, tablet size, production speed, and noise levels, have a direct effect on how quickly and consistently products are made. Depending on the size and complexity of the tablet, modern compression tools can make anywhere from hundreds to thousands of them per hour.

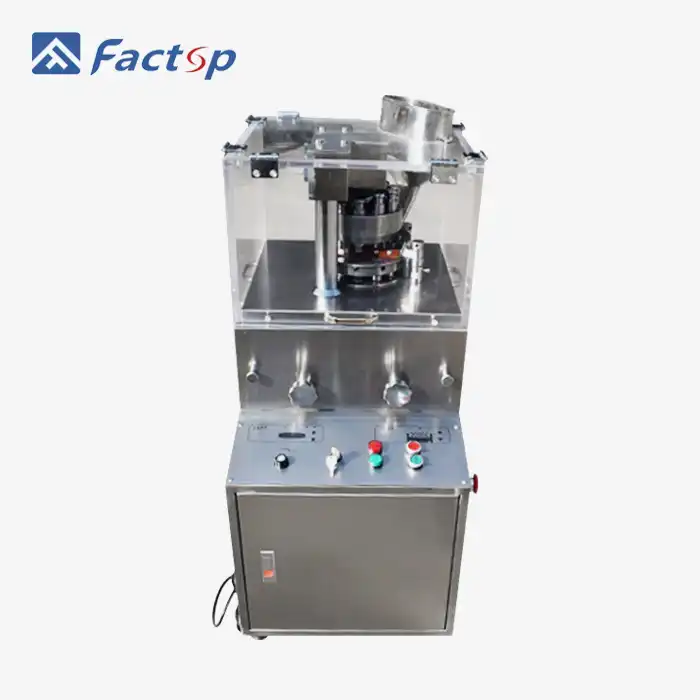

The ZP-5B type is an example of modern automatic pill press technology. It has a 5-punch die design and can handle up to 60 KN of pressure. The building of stainless steel and iron steel makes it long-lasting, and the built-in counter makes it easy to keep an eye on production. With these kinds of specs, makers can precisely crush tablets while keeping quality standards high.

When buyers know about these factors, they can choose tools that meet both their output goals and the rules set by regulators. Procurement experts can choose the best tools for their manufacturing goals by knowing things like compression force needs, machine compatibility, and automation capabilities.

Benefits and Maintenance of Tablet Die Press Machines

Tablet die presses are much better than traditional ways because they are more efficient, can make a wide range of tablet shapes, and can do exact filling. These tools make it possible to quickly change the production scale based on changes in demand while also providing better stability in tablet weight, hardness, and dimensions.

Key Advantages of Modern Compression Equipment

Modern compression devices are very flexible and can handle a wide range of powder formulas and pill shapes. Because of the following main benefits, tablet die presses are now required for all production tasks:

• More efficient production: Automatic compression machines can make thousands of tablets an hour with little help from an operator. This cuts down on labor costs and boosts speed compared to human methods.
• Better Quality Control: Integrated tracking systems keep an eye on the compression force, tablet weight, and measurement factors all the time. This makes sure that the quality of the product stays the same and waste from broken tablets is cut down.
• Flexibility in operations: quick-change tool methods make it easy to switch between products quickly, so makers can make different kinds of tablets on the same base.
• Compliance with regulations: Modern compression machines have features that help them meet FDA, GMP, and other regulations. These include batch tracking, validation procedures, and means to stop contamination.

These benefits work together to help producers make more money while still meeting high-quality standards for a wide range of production needs.

Essential Maintenance Protocols

But keeping the machine in good shape through regular checks, lubricant, and tuning is important for keeping speed and tablet quality at their best. Regular upkeep keeps expensive breaks from happening and makes sure that the quality of tablet production stays the same over long periods of time.

Preventive maintenance plans should include cleaning every day, greasing plans every week, and calibration checks every month. Tooling inspection methods help find wear patterns early, which keeps tablet quality problems from happening and increases the die's useful life. Fixing common problems like jams and worn-out parts can help you avoid downtime and expensive fixes.

Long-term dependability is ensured by good repair routines and solving skills, which protects investments and keeps output going. Completing paperwork for repair helps with following the rules and improves the performance of tools throughout their entire lifetime.

How to Choose the Right Tablet Die Press for Your Business？

Selecting an appropriate tablet die press requires a comprehensive assessment of production volume, budget constraints, tablet hardness, and shape complexity. Strategic equipment selection directly impacts manufacturing efficiency, product quality, and long-term operational costs.

Production Requirements Assessment

Manufacturers must evaluate current production volumes alongside projected growth to ensure equipment scalability. Small-scale operations may benefit from semi-automatic systems offering flexibility and lower initial investment, while high-volume facilities require fully automated solutions providing maximum throughput and consistency.

Tablet complexity considerations include shape variations, embossing requirements, and special coating applications. Simple round tablets require less sophisticated tooling compared to complex-shaped tablets with multiple embossed features. Understanding these requirements helps narrow equipment options to machines capable of meeting specific production demands.

Brand Comparison and Selection Criteria

Comparing leading industry brands—such as Fette, GEA, Karnavati, IMA, and Bosch—helps identify the best fit for specific manufacturing contexts, considering factors like machine versatility, technology, and after-sales support. Each manufacturer offers distinct advantages in terms of automation capabilities, tooling systems, and service support networks.

Evaluation criteria should encompass machine reliability, maintenance requirements, spare parts availability, and technical support responsiveness. Equipment warranties, training programs, and installation services represent additional factors influencing total ownership costs and operational success.

Decisions between new or used equipment should weigh warranty coverage, delivery logistics, and customization options, such as for a tablet die press. A strategic procurement process ensures acquisition of machines aligned with business goals while optimizing cost and performance parameters.

Conclusion

Tablet die presses represent essential manufacturing equipment enabling precise, efficient tablet production across multiple industries. Understanding compression machine fundamentals, operational principles, and selection criteria empowers procurement professionals to make informed decisions supporting long-term operational success. Modern compression technology continues advancing, offering enhanced automation, precision, and regulatory compliance capabilities that drive manufacturing excellence and competitive advantage in today's demanding marketplace.

FAQ

This section addresses typical queries encountered by B2B buyers, clarifying distinctions between tablet die presses and compression machines, best practices for maintenance to prevent breakdowns, and identifying brands known for precision tablet shaping.

1. What distinguishes tablet die presses from standard compression machines?

Tablet die presses incorporate specialized tooling systems specifically designed for pharmaceutical and nutraceutical applications, featuring precise die cavities and punch configurations that ensure consistent tablet dimensions and quality. Standard compression machines may lack the precision tooling and force control capabilities required for regulated tablet production.

2. How can manufacturers prevent common tablet press breakdowns?

Preventive maintenance represents the most effective approach to avoiding costly breakdowns. Regular cleaning, lubrication, and tooling inspection schedules help identify potential issues before they impact production. Operator training on proper machine operation and early problem recognition significantly reduces downtime risks.

3. Which tablet die press manufacturers offer the best precision capabilities?

Leading manufacturers, including Factop, Fette, and GEA, provide exceptional precision through advanced control systems and high-quality tooling. Equipment selection should consider specific precision requirements, production volumes, and available technical support rather than focusing solely on brand reputation.

Providing clear, actionable answers builds trust, helping clients make educated purchasing decisions and reinforcing our position as a knowledgeable industry partner committed to customer success and operational excellence.

Contact Factop for Your Tablet Die Press Requirements

Discover how our advanced tablet die press solutions can transform your manufacturing operations. Factop combines decades of engineering expertise with cutting-edge technology to deliver compression equipment that exceeds industry standards for precision, reliability, and efficiency. Our ZP-5B automatic pill press and comprehensive product line provide the foundation for successful tablet manufacturing across pharmaceutical, nutraceutical, and chemical applications.

Whether you require a single tablet die press for laboratory applications or complete production lines for high-volume manufacturing, our team provides personalized consultation and technical support throughout the procurement process. Contact michelle@factopintl.com to discuss your specific requirements and explore our extensive catalog of compression equipment.
